Customized Aluminium Profile Powder Coating Production Line with Automatic Conveyor System and Method Type

Automatic Powder Coating Line for Aluminum Profiles

High-Performance Finishing System for Aluminum Extrusions

This automatic powder coating line is designed for aluminum profiles used in architectural, industrial, furniture, and transportation applications. Combining automated electrostatic spraying with manual touch-up stations, the system delivers excellent coating uniformity while maintaining the flexibility required for profiles with different sizes, shapes, and cross-sectional designs.

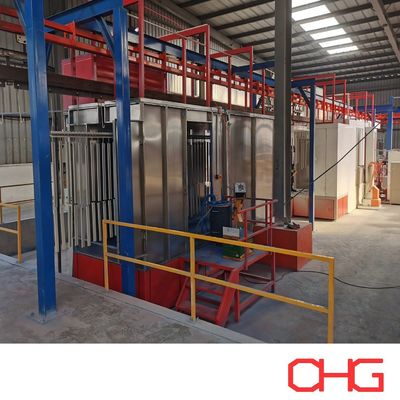

An overhead conveyor transports workpieces continuously through the production process, providing reliable material handling, efficient space utilization, and stable production performance.

Integrated Coating System

The production line combines several key process sections into one coordinated manufacturing system, including:

• Surface pretreatment

• Drying

• Automatic powder spraying

• Manual touch-up

• Powder curing

• Cooling

• Final inspection

Each section is engineered to ensure consistent coating quality while maximizing production efficiency.

Automatic Powder Spraying

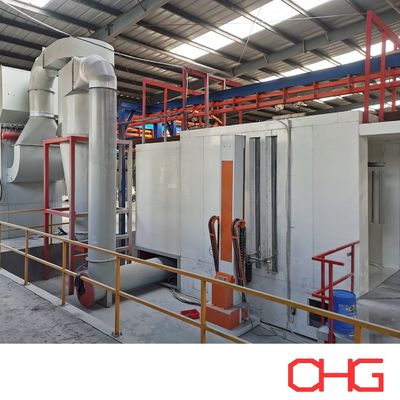

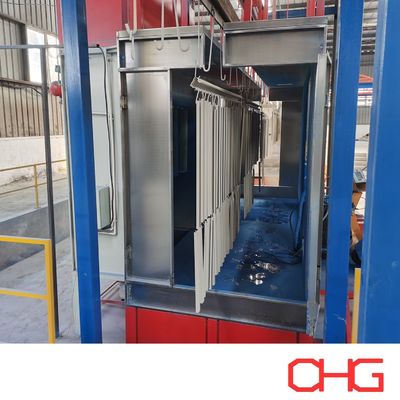

The coating booth is equipped with electrostatic powder spray guns that apply powder evenly across the profile surface. Automatic spraying provides consistent film thickness and high transfer efficiency, while manual operators perform additional coating on grooves, corners, and other difficult-to-reach areas when required.

This hybrid spraying method offers an ideal balance between production efficiency and coating quality.

Overhead Conveyor System

A continuous overhead conveyor carries aluminum profiles through each processing stage with stable and accurate positioning.

The conveyor system offers:

• Efficient material flow

• Reduced floor space requirements

• Flexible production scheduling

• Reliable transportation for profiles of various lengths

Manual loading and unloading simplify product changeovers and make the system suitable for both standard and customized production.

Typical Powder Coating Process

The production process generally includes:

1. Surface Cleaning – Removal of oil, dust, and contaminants to prepare the substrate.

2. Chemical Pretreatment – Degreasing, rinsing, and conversion coating improve corrosion resistance and powder adhesion.

3. Drying – Complete moisture removal before coating.

4. Electrostatic Powder Application – Automatic spray guns apply powder uniformly, while manual spraying ensures complete coverage of complex profile sections.

5. Curing – The coated profiles pass through a curing oven where the powder melts and chemically cross-links to form a durable protective finish.

6. Cooling – Controlled cooling stabilizes the coating before further handling.

7. Final Inspection – Finished products are inspected for coating thickness, adhesion, color consistency, gloss, and overall surface quality.

Benefits

• Suitable for aluminum profiles with various cross-sections and dimensions

• Consistent coating thickness and excellent surface appearance

• Efficient combination of automatic and manual spraying

• Reliable overhead conveying for continuous production

• High production efficiency with reduced powder consumption

• Flexible configuration for different production capacities

Customized Engineering Solutions

Every powder coating line is engineered to match the customer's production requirements. We can customize the pretreatment system, conveyor layout, powder spray booth, powder recovery equipment, curing oven, and automation level according to your workpiece specifications, production volume, and factory layout.

Whether you require a compact coating line or a fully automated production system, our engineering team can provide a complete turnkey solution designed to maximize productivity, coating quality, and long-term operational reliability.
